Hansen Develops Efficient Factory Trawler

Maritime Activity Reports, Inc.

February 8, 2012

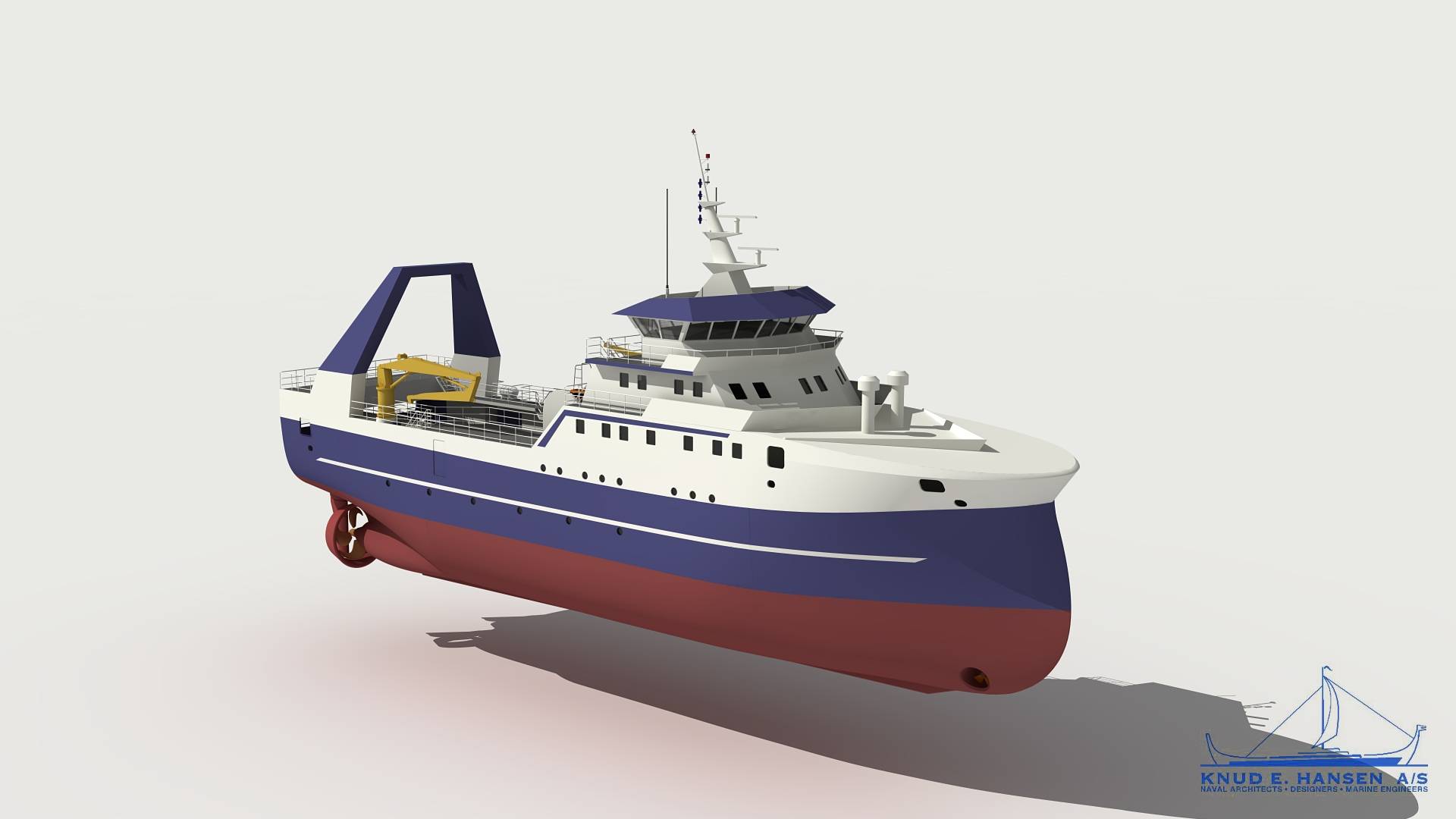

50 m factory trawler.

50 m factory trawler.

50m Factory Trawler sets the standard in efficiency and fish processing capacity.



The Danish Naval Design and Marine Consultancy Knud E. Hansen A/S has developed a highly efficient 50 meter factory trawler with a focus on operating efficiency and maximised catch processing facilities. The design delivers excellent fuel economy, reduced environmental impact, and the flexibility to be operated as a single or pair trawler.


Fishery

Fishing is well known to be an environmentally sustainable method of food production. Greenhouse gas emissions are far lower than the equivalent land-based meat production.


Trawling

Even though trawling has been regarded as destructive and high oil consuming, it is a fact that pelagic trawling together with purse seine is the most sustainable way of catching fish measured by energy consumption and emission of greenhouse gasses per unit catch. Through the use of new technology pelagic trawls can also operate close to the bottom catching “ground-fish” without damaging the sea bed. In addition, pelagic trawling has a low rate of unwanted by-catch compared to other fishing methods. Trawling does therefore have a future as a sustainable way of producing food.


Size of trawler


Standards of safety, working- and living conditions together with the desire to allow reasonable space for processing catch on board have led to an optimal ship length of at least 50 metres. Examining the current trends in the size of vessels in fishing fleets around the world ship lengths of 55 to 60 metres are prevalent; in line with this new energy-efficient design from Knud E. Hansen A/S.


Vessel layout


The trawler is designed with 2 continuous decks for a fluid workflow plus one partly open boat deck and a forecastle deck. The superstructure is three decks high and is positioned forward of amidships. The fish hold and engine room together with bunker tanks are placed below the first deck. The entire first deck, apart from engine casings aft, is dedicated for fish processing and quick freezing - some 300 square metres of customizable space. The second deck is the trawl deck and has double trawl lanes running the entire ship length with casings at each side forward containing accommodation and trawl-shops. On the boat deck behind the superstructure is ample space for winches, cranes and lifesaving equipment.


Energy efficiency


The hull is designed with a bow shape optimised for efficient operation in all sea states and at all draughts while trawling. The propulsion system has been designed with a focus on energy efficiency and consists of two low-speed large-diameter propellers in nozzles optimized for trawling speed. An efficient single propeller solution can also be achieved if desired by the operator. The ship is constructed to meet the DNV-SILANT-F requirements and as low noise radiation into the sea generally results in better catch it thereby lowers the fuel consumption and greenhouse gas emission per unit catch.


Configuration


The trawler can be configured to operate both as a single trawler and as a pair trawler. If intended for pair trawling only, a lower installed power and a reduction in the number of winches and trawling equipment will be possible.
