Surveys without Scaffolds: Ship Tanks Inspected with Drones

Maritime Activity Reports, Inc.

December 17, 2015

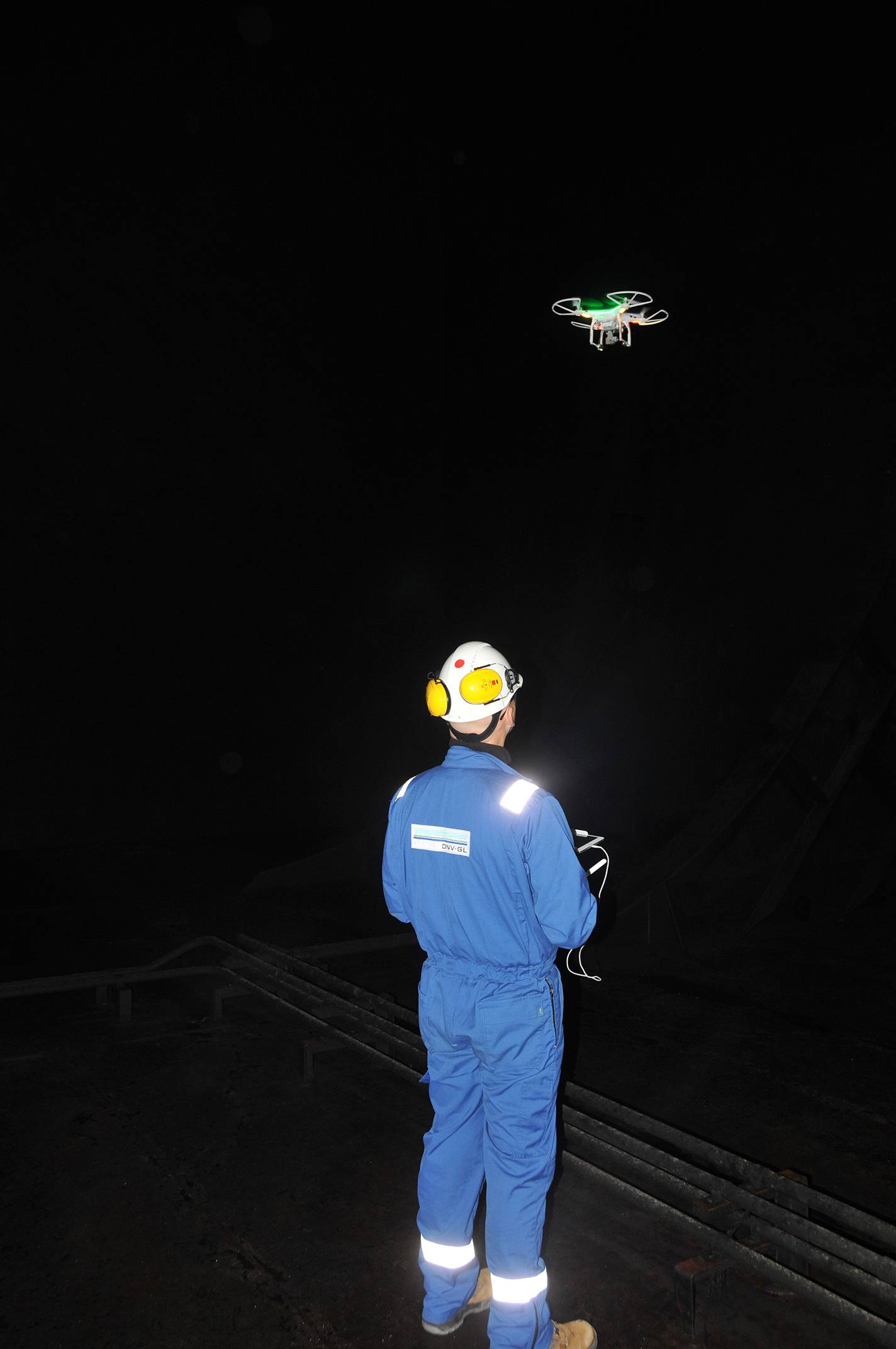

DNV GL surveyors tested a camera-equipped drone to visually evaluate structural components through video streamed to a tablet. One surveyor operated the drone, while a second checked the video feed in real time.

DNV GL surveyors tested a camera-equipped drone to visually evaluate structural components through video streamed to a tablet. One surveyor operated the drone, while a second checked the video feed in real time.

Classification society DNV GL informs it has recently completed several tests using drones to support the hull survey of two vessels.


Conducted by the classification team based in Gdansk, Poland, the tests took place at the Remontova shipyard, where the drones equipped with cameras were employed to visually check the condition of remote structural components. According to DNV GL, this practice has the potential to not only reduce survey times and staging costs, but at the same time improve safety for surveyors.

“We have been looking at ways we could help our customers by accelerating the survey process,” said Cezary Galinski, Manager of the DNV GL – Maritime classification flying squad based in Gdansk. “Camera equipped drones are now much more widely available and affordable, and by using them for a first screening we can identify areas that require closer inspection quickly and without extensive staging, which can be both costly and time-consuming.”

The tests used a camera-equipped drone to visually evaluate structural components through video streamed to a tablet. One surveyor operated the drone, while a second checked the video feed in real time. The stream was also recorded for review and documentation purposes. Equipped with a powerful headlight, the drone was able to produce a video of sufficient quality for initial inspection purposes. In the event any damage is detected, a traditional close-up survey may still be required.

“We used a modified off-the-shelf drone for our tests,” Galinski said. “Because there are currently no drones formally certified as explosion-proof commercially available, we performed a risk assessment. Of course, before the drone operation started, we also ensured that the cargo tank was gas-free and certified for safe entry.”

“Our next step is to work with a more advanced tailor-made drone in early 2016,” Galinski said. “We are also developing a special guideline for performing drone-based surveys. This could open the way to remote or even autonomous inspections being carried out as part of our survey scheme in the near future.”

DNV GL cited its longstanding R&D program working on developing advanced inspection technologies, for example the IRIS system which can automatically associate photos onboard a ship with a 3D model of the vessel’s structure. “Using a drone in combination with a system like IRIS could be very beneficial to our customers,” said Dr. Pierre C. Sames, Director of Group Technology and Research. “We have already demonstrated the ability to place images within a 3D model and furthermore to assess the individual findings. These are the first steps towards an automated survey process which might include using a drone to make the initial survey, taking the images generated and then running them through an algorithm to determine the hull condition.”
